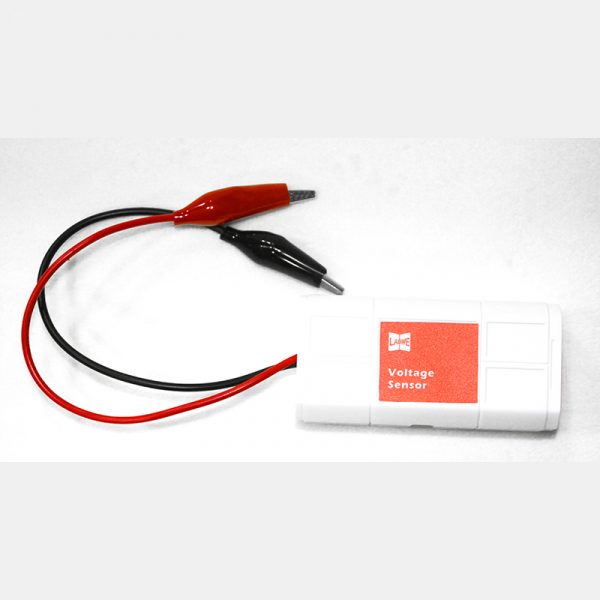

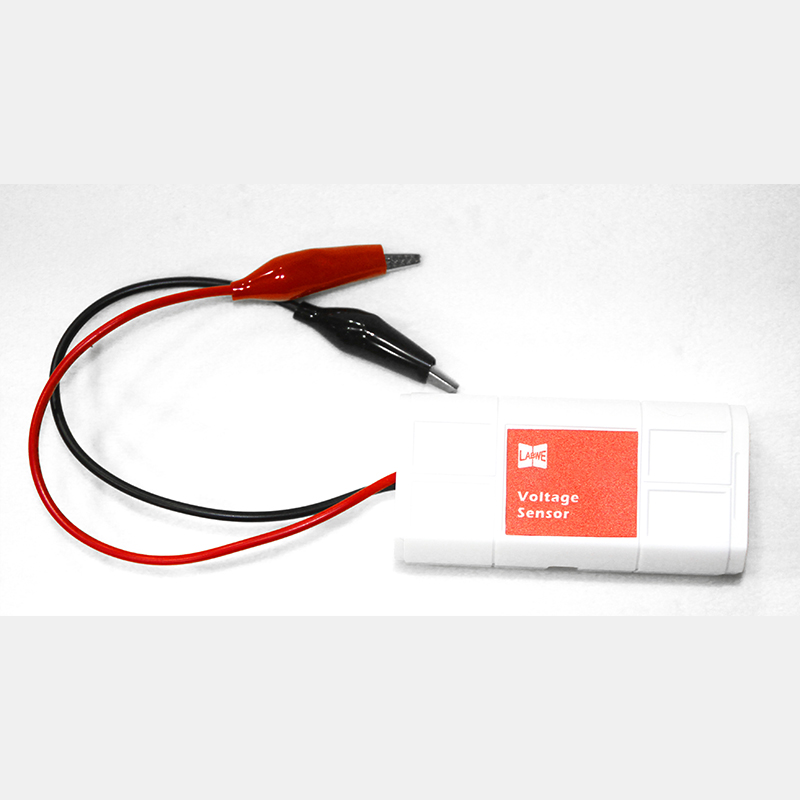

Electrical voltage sensor

The voltage sensor is designed for laboratory studies of the basic laws of electricity in low voltage circuits. The sensor can be used to measure the electrical potential difference at the ends of an electrical component in DC circuits and AC circuits. Possibility of application in carrying out standard experiments: measurement of potential and internal resistance of the power source; measurement of the current-voltage characteristics of a light bulb, diode, conductor; Ohm’s law; series-parallel
connection of resistances; phenomena of electromagnetic induction and induced current; series-parallel connection and charge-discharge of capacitors. The sensor complies with the following parameters:
1.Measuring range: -25V~+25V, measuring frequency not less than 1000 Hz, over voltage
protection
2.Resolution: 8mV 3. Accuracy: ±8mV 4. Internal resistance: 1.5MΩ
Electrical intensity and voltage sensors can be combined
The sensor is compatible with data loggers, connection via RJ45 interface
