Wireless Current Sensor

I. Working Principle

The current sensor uses a sensitive sampling resistor to collect the current flowing through the current sensor and convert the current signal into a voltage signal, which is then amplified and outputs a standard signal.

II. Specifications

Range: -3.0 A ~+3.0 A.

Resolution: 0.01 mA.

Accuracy: ±0.0015A.

The maximum sampling rate: 10000 Hz.

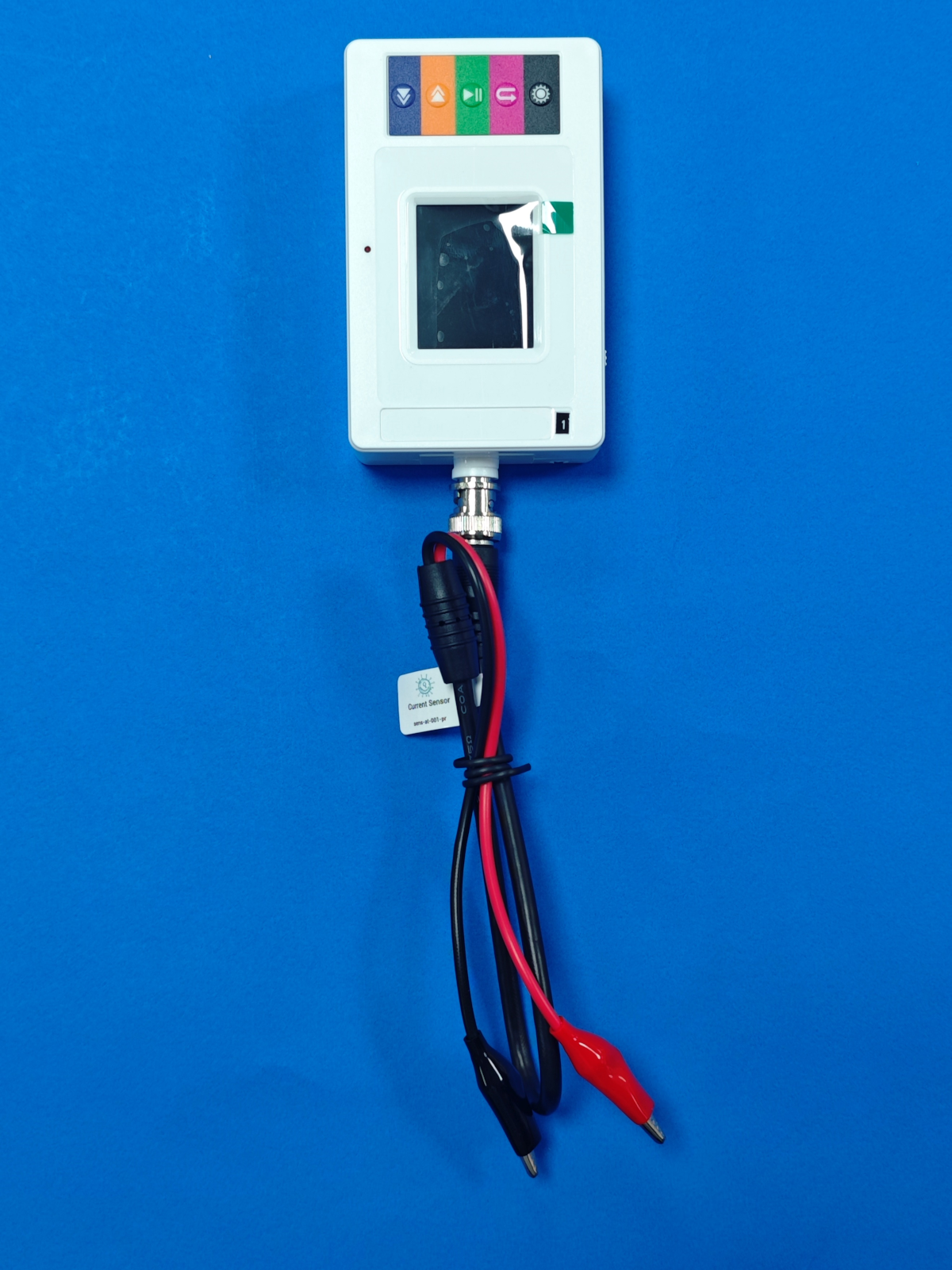

III. Structure and Function

1. The sensor terminal comes with a 1.8-inch color LCD screen.

2. The sensor terminal is equipped with 5 function buttons. The operation interface is simple and convenient.

3. The sensor terminal supports high-speed USB data channel, which enables high speed transmission to the datalogger.

4. The sensor terminal supports wireless communication with experimental terminals.

5. The sensor terminal has a built-in removable battery with a large capacity.

6. The sensor terminal is designed with a hidden buckle sensor interface to support combined experiments with other sensors.

7. The sensor terminal has designed a fixation spot to get it fixed on the iron frame conveniently and combined with traditional lab equipment for experiments.

8. The sensor terminal supports the latest operating systems, such as iOS, Android, windows operating systems, etc.

IV. Typical Applications

The current sensor is used to measure the current at any point in the circuit. Its typical applications are: the properties of series and parallel circuits, measuring the electromotive force and internal resistance of batteries, the volt-ampere characteristics of small light bulbs, Ohm’s law, etc.

V. Caution

This product is suitable for educational use only and is not suitable for industrial, medical, research, or commercial applications.

VI. Usage Tips

1.The usage method is similar to the ammeter. When using it, the current sensor must be connected in series in the circuit. If the current to be measured flows in from the red wire of the current sensor and flows out from the black wire, the displayed value is a positive number; if the connection is reversed, the displayed value is a negative number.

2. The current to be measured cannot exceed the range of the current sensor, otherwise the sensor will be easily damaged!
