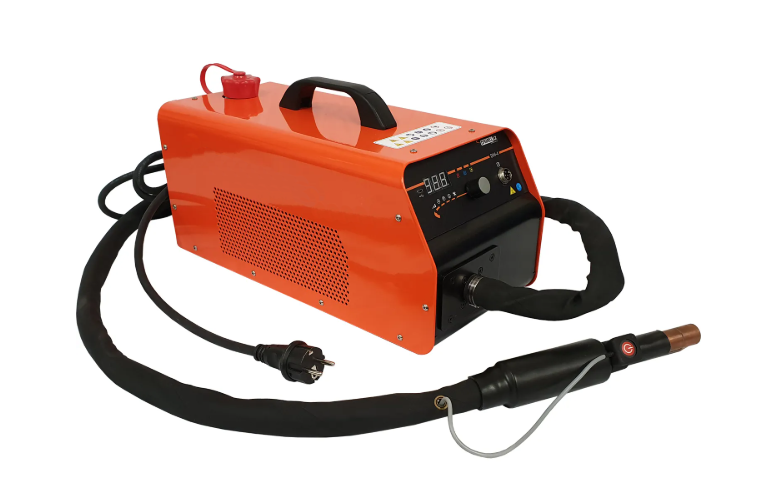

Induction heater

Cable, can be equipped with various induction heating heads.

This heater is mainly used to heat various magnetic materials, with small size, light weight, high output power, and simple operation. It is an ideal equipment for production workshops, automobile repair shops, and other repair industries.                                                         Technical Parameter

Rated power supply: 230V (180-260) 50/60hz

Input current: 16A

Insulation level: ip22

Power adjustment: 10-100%

Input power: 3,7 kW

Output power: 4000VA

Dimensions (length, width, height): 440x200x240 mm

Coolant capacity: 2.50 L

1. Portable: weighs only 11.5KG (including cooling water). 2. Power: 3.7KW, 4KVA, high load factor. 3. Easy to use: 2-meter induction heating cable. 4. Lightweight and portable, easy to operate. 5. The induction coil is small and can deeply heat the nut at the narrow and deep part of the alloy wheel. 6. Maximum usage time: approximately 5-6 minutes.

Configuration

1. Display screen.
2. Water cooled induction coil.
3. Power infinitely adjustable (10-100%).
4. The usage time can be set.
5. USB ports can be used for software upgrades.
6. The front end of the induction coil is equipped with an LED working indicator light.
