$5,000.00 $4,500.00

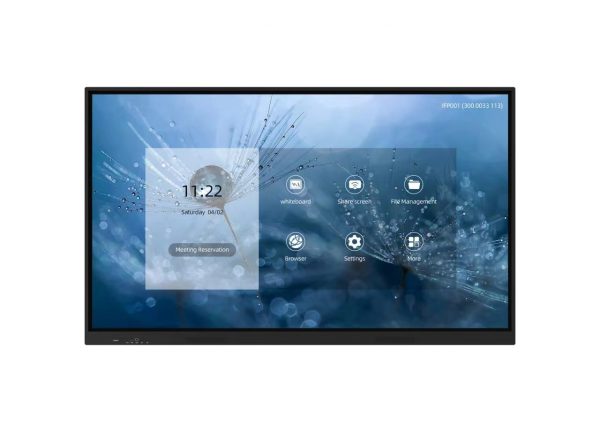

Model: Vibe S1 65 Smart Panel
1、Display specs
Display size | 65 inch(16:9) |
Panel type | LED |
Screen display size | 1428.0 x 803.0mm 【HxV】 |
Physical resolution | 3840(H)× 2160(V) |
Display color | 10 bit, 1.07B |
Refresh rate | 4K-60HZ |
Brightness | 350 cd/m2 |
Contrast ratio | 5000:1 |
Angel of view (degree) | 178° |
Display screen protection | 4mm fully toughened high explosion-proof |
Backlight life | 50000 hours |
2、Touch specs
Touch embedding mode | Built-in integrated, not external |
Touch sensing technology | Infrared induction recognition touch technology (20 points) |
Writing method | Fingers, touch pens or other non-transparent objects with a diameter of no less than 5mm (multi-point 8mm) |
Cursor speed | 120 points/s |
Positioning accuracy | ± 2mm for more than 90% of the touch area |
Communication interface | B-type USB male |
Touch resolution | 32767*32767 |
Touch times | Theoretically infinite |
Computer response | Automatic system identification; ≤ 15ms |
Driver | HID |
Touch function | Support 20-point computer touch operation Support image enlargement, reduction and rotation |
3、Function specs
Speakers | 10W /8Ω× 2 | ||||
TV | ATV( PAL 、SECAM 、NTSC) | ||||
External port of main board |
AV input port: 1 group [three in one] | TUNER input port: 1 group | |||
VGA input port: 1 group | EARPHONE output port: 1 group | ||||
VGA audio input port: 1 group | USB2.0 port: 1 group | ||||
HDMI input port: 1 group | TOUCH external computer touch: 1 group | ||||
Front terminal input |
USB port: 2 sets ,HDMI input 1set, Touch USB port (external computer)x1 | ||||
Other functions | Support full-channel switch touch, touch menu, touch menu operation, touch volume adjustment, touch brightness adjustment Support sleep timing and shutdown memory Support one-touch energy saving [that is, the screen is not bright and the all-in-one machine is in working state, and audio and video can be played normally] Support remote control child lock function Support one-button switch of computer and TV with front button Support one-touch shutdown of touch menu Support USB2.0 connector of front computer Support the transfer of external equipment to use the machine’s built-in touch box function |
4、Overall features
Shell and appearance | Aluminum profile frame corner block design, front button, front port, front horn | ||||
Colour | Black, silver [optional] | ||||
Machine overall size | 1482.7 *879.5*91.8mm | ||||
Package size | 1600*1000*200mm | ||||
Net weight | 40KG | ||||
Gross weight | 48KG | ||||
Maximum power Consumption rate |
≤170W | ||||
Standby power | ≤0.5W | ||||
Installation method | Standard wall bracket (optional for mobile bracket) |
5、Working environment
Workplace | Indoor | ||||
Working temperature | 0°C – 40°C | ||||
Working humidity | 10% – 90% No condensation | ||||
Storage temperature | -20°C – 60°C | ||||
Storage humidity | 10% – 90% No condensation |
6、OPS PC
Name | OPS PC | ||||
CPU | Intel ICE LAKE i5 1035g1 | ||||
RAM | 8GB | ||||
Storage | 256G SSD | ||||
IO panel | Power switch *1, LED indicator *1, Mic *1, Audio Out *1, Type C *1, HDMI *1, DP *1, LAN *1, USB2.0*4, USB3.0 *2, Ghost *1 | ||||
OS | Windows 11 Pro |
7、Standard accessories (accessories shall be provided according to the actual situation)
Name | Quantity | ||||
Remote control | 1 | ||||
Maintenance card | 1 | ||||
Touch pen | 1 | ||||
Certificate | 1 | ||||
Instructions | 1 | ||||
1.5m power cord | 1 | ||||
Wall mount brackets | 1 |
8、size drawing unit:mm
9、Software Features
The software has the functionality of creating interactive content and working with external devices.
I. Real-time saving: The edited content of the demo version is automatically saved in real-time to prevent files and operations from being lost due to abnormal power failure and shutdown.
II. Browser: The software comes with its own browser and has the usual functions of the browser, which is convenient for teachers to use in a browser-less environment.
III. The function of intercepting webpage content: It has the function of intercepting webpage content in the browser, which can directly capture the entire webpage and save it to the demo version page as an object operation, and in the demo version page object, it can also be used as a browser to operate the webpage.
IV. Interaction with the project: The objects on the page have adding instructions, which can link audio files, link to the page, link to the web page, and click to play by interacting with the project magic hand.
V. Multi-screen display: With a multi-screen display switch, it is convenient for teachers to use in a multi-display environment in class.
VI. Svg/iwb format support: The software supports import formats (*.ubz *.ubx *.pdf *.bmp *.gif *.ico *.jpeg *.jpg *.mng *.pbm *.pgm *.png * .ppm *.svg *.svgz *.tga *.tif *.tiff *.xbm *.xpm *.iwb) Support export format: *.ubz *.pdf *.iwb
VII. Teaching interaction: Provide many teaching interactive tools to facilitate teachers to make interactive courseware in advance, making the classroom full of interactive fun;
1. Interaction with associated images: Teachers can customize questions for students to choose the corresponding pictures, the tool automatically recognizes whether the answers are correct or not, and teachers can customize the answer options.
2. Mental arithmetic judgment of the same quality: Provide balance applications, choose different specifications of weights, to achieve the same quality, teachers can set different judgment conditions, and customize different combinations.
3. Watch face mental arithmetic tools: provide watch face applications, by selecting different data and operators, you can verify the results of mental arithmetic, and teachers can customize the watch face data.
4. Mathematics simple calculation tools: provide mathematics simple calculation tools, interactive training increases, decreases and multiplies numbers. The goal is to enter the correct result. The software can automatically judge right and wrong, and the teacher can set the difficulty and the number of digital interactions.
5. Math size sort tool: Ascending or descending number, the goal is to place numbers in the correct order by dragging and dropping the label to the correct position.
6. Categorized pictures and text tools: Drag and drop pictures or text options into the corresponding categories to automatically determine the results. The picture, text and category conditions can be customized by teachers;
7. Multiple-choice question tool: The software provides a multiple-choice setting tool, which can set questions and options. There are three ways of single-choice questions, multiple-choice questions, and drop-down selection;
8. Memory matching game: Pair and remember the position of various cards, and place the cards face down in the grid. The player turns two cards. If the two cards match, the card isnot covered. If they do not match, the card is turned over. Teachers can independently set the number of sheets, conditions, support for pictures and text.
9. English listening composing tool: listen to audio files and drag and drop tags in the correct order. If the result is correct, the area turns green.
10. Arrange sentences in English: Sort sentence fragments to reconstruct the text. Interactivity displays labels in random order. Drag and drop the clips in the correct order. If the result is correct, the area turns green.
11. Arrange words in English: regroup words in order to reconstruct the correct sentence. Interactivity displays tags in random order. Drag and drop the words in the correct order. If the result is correct, the area turns green.
12. English syllable practice: Separate the syllables of a word, the goal is to split the word correctly. If the result is correct, the area turns green.
VIII. Teaching tools:
1. The software comes with a calculator application tool;
2. The software comes with a calendar application tool
3. Intelligent geographic recognition tool: display the world map, follow the mouse to display the detailed location, country and flag.
4. Mathematics coordinate system tool: According to different function expressions, intelligent display of coordinate system broken line graphs, support for mathematical functions such as sine and cosine, and set line colors.
5. Clock and electronic watch application tools;
6. Stopwatch timing application tool
7. Hourglass Timing Application Tool
8. 3D molecular structure model application tool
9. Celebrity Quotes Widget
10. Smart offline map tool: It can automatically recognize languages according to the region, can zoom in to county-level units, zoom out to the world map display, and automatically circle the islands.
11. Intelligent interactive element periodic table application tool: Click on an element to display detailed information of the element.
10、Photo
