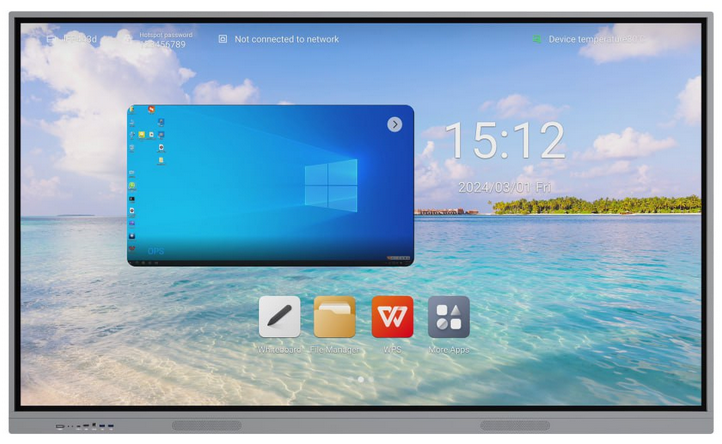

Vibe SA 85 smart Panel
$9,500.00
1、Display specs
| Display Size | 85 inches (16:9) |
| panel type | LED LCD display screen |
| Screen display size | 1428.0 x 803.0mm [HxV] |
| Physical resolution | 3840（H）×2160（V） |
| Display color | 10bit, 1.07B |
| Refresh rate | 4K-60HZ |
| brightness | ≤450cd/m2 |
| contrast ratio | 5000：1 |
| Perspective (degree) | 178° |
| Display screen protection | 4mm fully tempered high explosion-proof anti glare glass |
| Backlight lifespan | 80000 hours |
2、Touch specs
| Touch embedding method | Built in integrated, non external, front detachable design |
| Touch sensing technology | Infrared induction recognition touch technology (20 points) |
| Writing method | Fingers, touch pens or other non transparent objects with a diameter of not less than 5mm (multi-point 8mm) |
| Cursor speed | 120 points/s |
| positioning accuracy | More than 90% of the touch area is ± 2mm |
| communication interface | B-type USB male connector |
| Touch resolution | 32767*32767 |
| Touch frequency | Theoretical Infinite Times |
| Computer response | System automatic recognition; ≤ 15ms |
| Driver program | No drive required |
| Touch function | Support 20 point computer touch operation
Support image enlargement, reduction, and rotation |
3、Interactive functional parameters
| Speaker specifications | 10W/8 ohms x 2 speakers | |
| G6780V1.A board, 4+32G, Android 14.0 system, GPU：
Quad-core MaliG52 600MHz， CPU: 8 core A55 ,1.2GHz，up to 1.5Ghz, 2.4G+5Gwifi+B T5.0 |
HDMI output port: 1 set | RS232 port: 1 set |
| Earphone port: 1 set | Coaxial port: 1 set | |
| MIC IN port: 1 set | RJ45 input port: 1 set | |
| RJ45 output port: 1 set | DP input port: 1 set | |
| VGA Audio input port: 1 set | VGA input port: 1 set | |
| HDMI (ARC) input port: 1 set | HDMI input port: 1 set | |
| PC TOUCH 2.0 port: 1 set | USB 3.0 ports: 1 set | |
| USB 2.0 ports: 1 set | TF Card port: 1 set | |
| Front terminal input | Front interface: USB * 2 (full channel), type-c * 1, HDMI IN * 1, TOUCH * 1
Front seven keys: Energy saving, Power, Home, Volume -, Volume+, Menu, Signal Source Front one button: power on/off |
|
| Other functions | Support full channel switching touch, touch menu, touch menu operation, touch volume adjustment, touch brightness adjustment
Support one touch energy-saving Support individual listening [i.e. the screen is not lit while the all-in-one device is in working mode, and audio and video can be played normally] Support wireless screen mirroring on mobile phones Support one click screen recording function Support touch menu one click shutdown Support USB 3.0 socket for front facing computers Support transferring external devices to use the machine’s built-in touch box function Support network following function Support inserting signal sources, videos, browsers, file management, images, and PPTs into whiteboards. |
|
4、Whole machine characteristics
| Shell and appearance | Aluminum profile frame zero sticker design, front buttons, front ports, front speakers | |||
| colour | Iron gray | |||
| machine overall size | 1482.4*895.4*89.5mm | |||
| Packaging size | 1602*205*1022mm | |||
| Net weight | 40KG | |||
| Gross weight | 48KG | |||
| Maximum power consumption rate | ≤135W | |||
| standby power | ≤0.5W | |||
| Installation method | Standard wall bracket (mobile bracket optional) | |||
5、Working environment
| Workplace | indoor |
| working temperature | 0°C – 40°C |
| Working humidity | 10% -90% non condensing |
| Storage temperature | -20°C – 60°C |
| Storage humidity | 10% -90% non condensing |
6、OPS PC (optional)
| Name | OPS PC | ||||
| CPU | Intel Ultra 5 or Intel Ultra 7; Intel Core i5/і7, 12 or 13 gen | ||||
| RAM | 8GB | ||||
| Storage | 256G SSD | ||||
| IO panel | Power switch *1, LED indicator *1, Mic *1, Audio Out *1, Type C *1, HDMI *1, DP *1, LAN *1, USB2.0*4, USB3.0 *2, Ghost *1 | ||||
| OS | Windows 11 Pro | ||||
7、Standard random attachments (with attachments according to actual situations)
| name | quantity |
| Remote control | 1 piece |
| Battery | 2 of them |
| Repair card | 1 sheet |
| Touch pen | 1 unit |
| certificate | 1 sheet |
| instructions | 1 book |
| 1.5-meter power cord | 1 piece |
