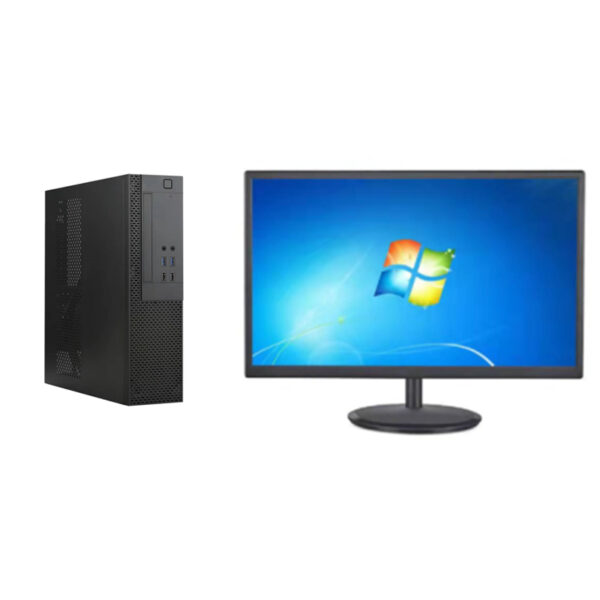

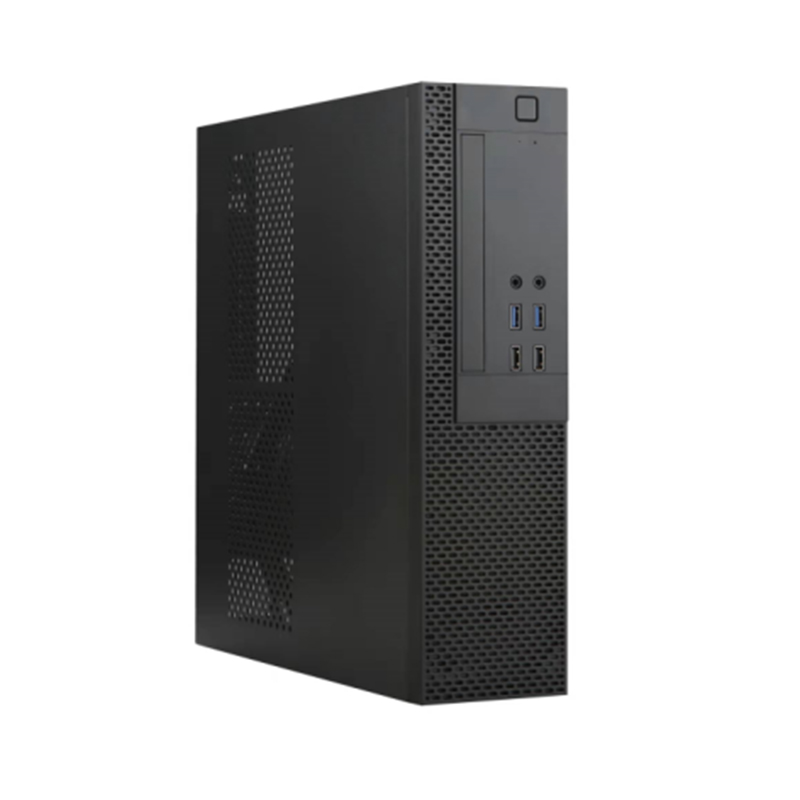

Work Station

---

Best Desktop Work Station

Model: W2403-M, Part Number：2.12.02.010001

---

Technical specifications

Processor
Intel Core i5-10400 Processor
6 cores;
12 threads;
2.9GHz base operating frequency;
4.3GHz maximum operating frequency;
DMI3 8GT/S bus speed;
65W (TPD)
Lithography: 14nm

Motherboard
ASUS H510M-K, part number：2.89.05.010002;

RAM
Type: DDR4;
Capacity: 8GB;
Operating frequency: 2666MHz;
Expandability: up to 128GB;

Expansion slots
PCIe Gen3.0: 2 slots;
M.2 type storage: 1 slot type 22×80 for storage device;

Harddisk
Type: SSD;
Capacity: 256GB;

Graphic subsystem
Type: Integrated in the processor;
Intel® UHD Graphics 630
Resolution: 4096 × 2304 60Hz;
Video memory: use of shared standard memory;
Displays Supported: 3;

Security
Trusted Platform Module 2.0 chip;
TCG or CC EAL or FIPS 140-2 certification;
Standard Security lock slot

Audio
Type: Integrated audio controller;
Number of audio channels: Stereo;

Communications
Ethernet: Integrated Gigabit Ethernet controller;

Power supply
100-220V AC/50-60Hz , GW-4500 350W Bronze Certification;

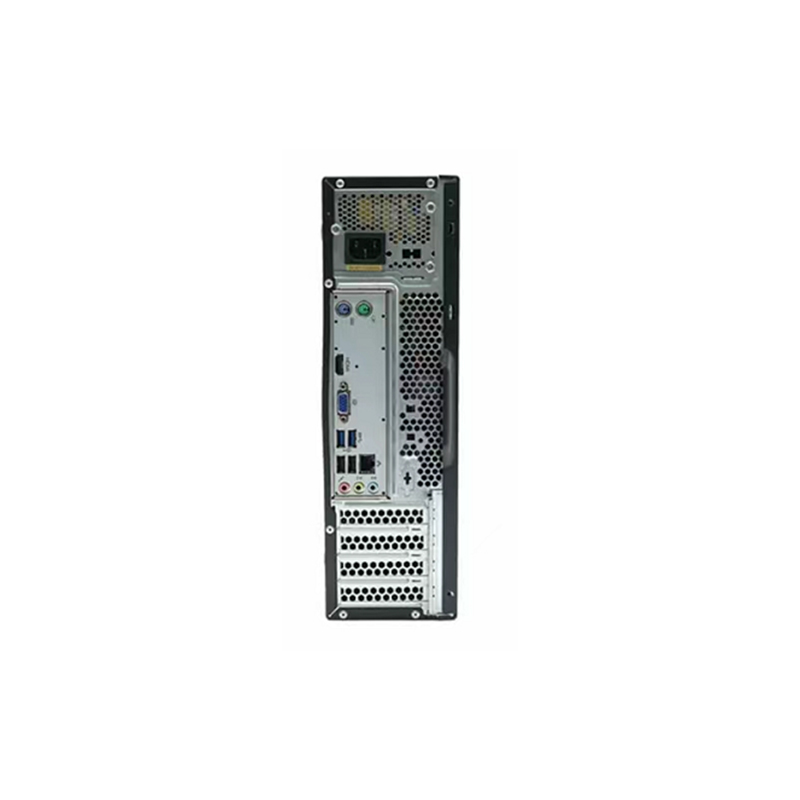

I/O Port
USB 3.2  x 4
USB 2.0  x 2
DC x 1
Headphone x 2; MIC x 2
HDMI output x 1; PS/2 x 2
Ethernet port x 1 RJ-45;

OS
The Whole Machine Can Be Pre-installed With A Trial Version Of Win10

Warranty
Period: 12 months

Others
Weight: about 5 kg
Accessories:  Adapter, User Manual, Quick Start, Warranty Card, Manual, English USB Wired Keyboard, Wireless Mouse

*Note: Due to the end of supply of power supply GW-4500 350W Bronze Certification model, an equivalent GT-300 300W Bronze Certification model shall be applied.

---

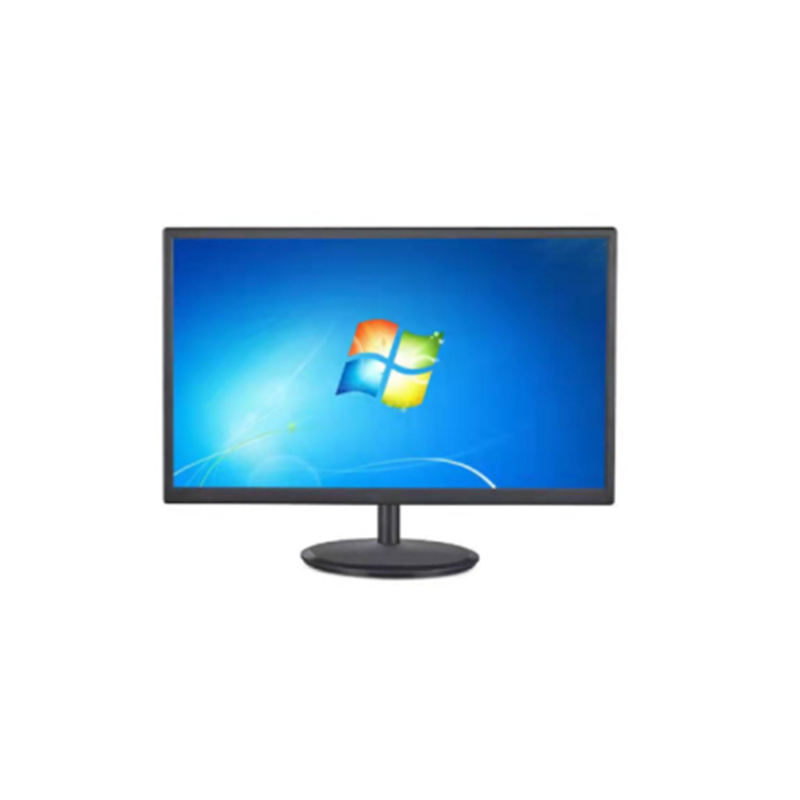

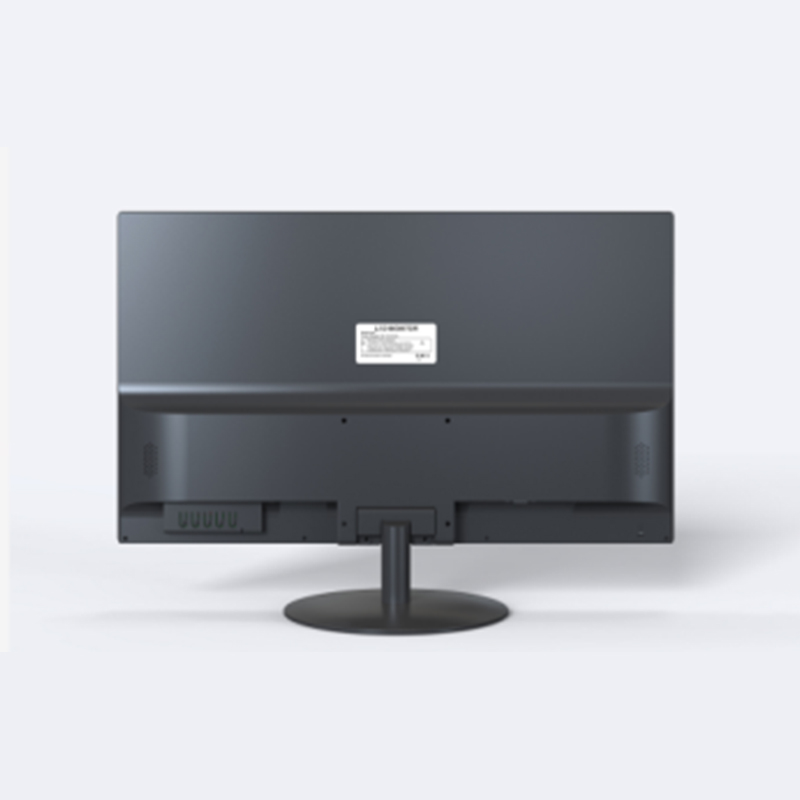

FHD Monitor (23.8″)

Model: D101A, Part Number：2.89.04.000025

---

Technical specifications

LCD Panel & Opitical
Display size: 23.8″
Brightness (Typical): 250cd/m²
Contrast Ratio (Typical): 1000:1
Pixel Pitch: 0.2745×0.2745 mm
Resolution (H x V): 1920*1080 @60Hz
Aspect Ratio: 16:9
Response Time (Typical): 14ms(Typ)
View Angles LR, UD (CR>10): 178°/178°
Display Colors: 16.7M colors (6 bit RGB data input)

Interface
Input 1: VGA
Input 2: HDMI 1.4
Input 3: DC IN

Power
Consumption (Typical): <=24W
Power Range: AC 100~240V 50/60Hz / DC 12V 2A
Power Mode Indicator Light: Power on is Blue

Operating Condition
Temperature: 0℃~40℃
Humidity: 10~90%RH

Storage Conditon
Temperature: -20ºC~60ºC
Humidity: 10~90%RH

Physical Data
Net Weight: 4.2 kg
Gross Weight: 5.6 kg
Tilt Angle: -5°~20°
Kensington Lock: YES
VESA Mounting: Optional

Default Setting
Color: 6500K
Recall Brightness: 220 cd/m²

Accessories
Power adapter: 1 x Adapter( DC 12V 2A)
HDMI Cable: 1 x HDMI Cable
User Manual: YES

Quality requirements
Reliability:
Room Temperature Drop Test
High Temperature Test
Low Temperature Test
Vibration Test

Color Plan
Black or White
